DESIGN CRITERIA
Wind Load: 90 MPH minimum
Ground Snow Load: 30 psf minimum
All Federal, State and Local codes reviewed
COLUMNS
HSS ASTM A-500 Grade B A-500
Coating Options: Primed or Hot Dip Galvanized
BEAMS
Misc. or Wide Flange A-992 Grade 50 Steel
Coating Options: Primed or Hot Dip Galvanized
PURLINS
16 GA. Cold Rolled G-90 Galvanized Steel
RACKING:
16 GA. Cold Rolled G-90 Galvanized Steel
Cold formed Z or hat shaped section
Pre-punched to Receive Solar Panels Directly
STANDARD FEATURES:
Fixed Tilt Slope up to 5º
Hot Dip Galvanizing
Site-specific Configuration and Layout
16 gage Pre Punched Solar Racking
OPTIONS:
Fixed Tilt Slope up to 10º
End Overhangs 1’
Roof Sheeting
Soffit Under Sheeting

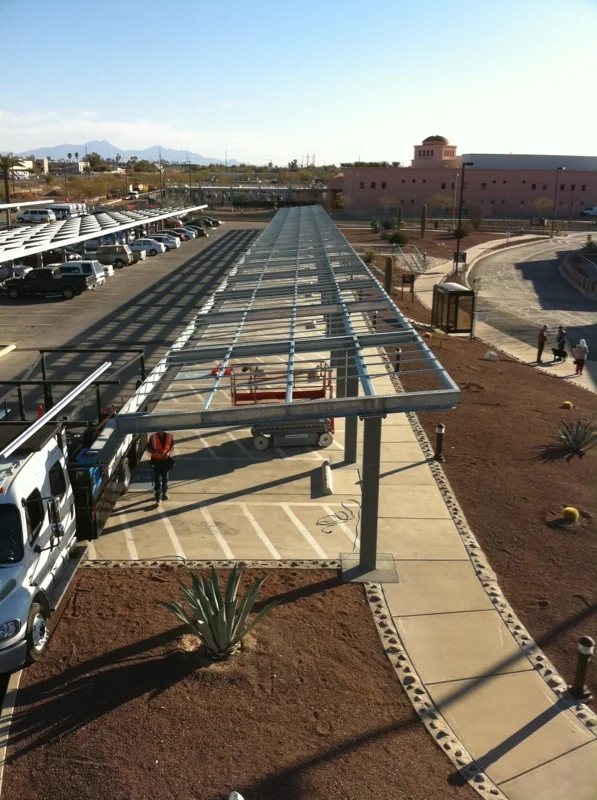

This solar ready carport is configured with one column every bay " two car spaces" and comes complete with 16gage z racking pre-punched with the hole pattern to match the solar module you have selected.
